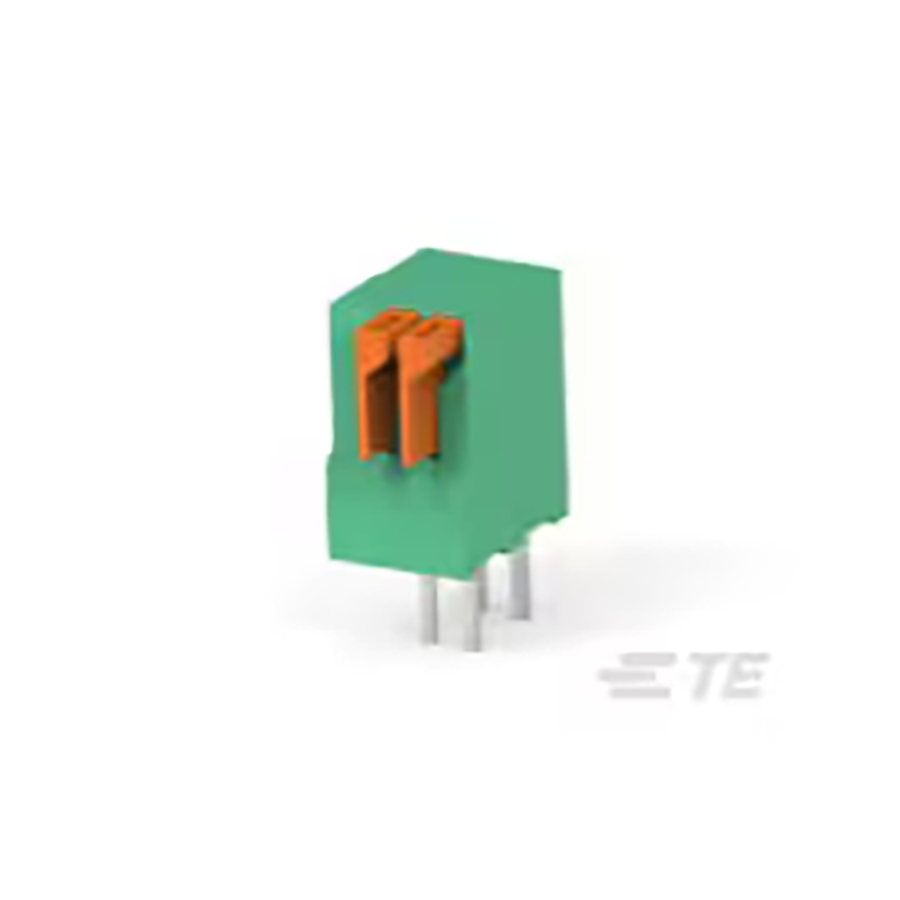

1-2834015-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-2834015-2
Datasheet:
Description:
Terminal Blocks Through Hole 2 2.54 mm 6 A 150 V 26 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Termination | Spring Clamp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Packaging | Bulk |
| Voltage Rating | 150 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 150 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 6 A |
| Approvals | UL |
| Orientation | Vertical with Board |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Connector Type | Connector, Receptacle |
| Wire/Cable Gauge | 20 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Contact Current Rating | 6 A |
| Housing Color | Green |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Push-In |
| Wire Gauge Range | 26 AWG to 20 AWG |
